Lot Tracking in Microsoft Dynamics NAV 2015

Now in our little coffee endeavor we actually started buying coffee – coffee beans – and we wanted to lot track that since it’s food. This is relating to the Fresh Summit food conference, which we just attended.

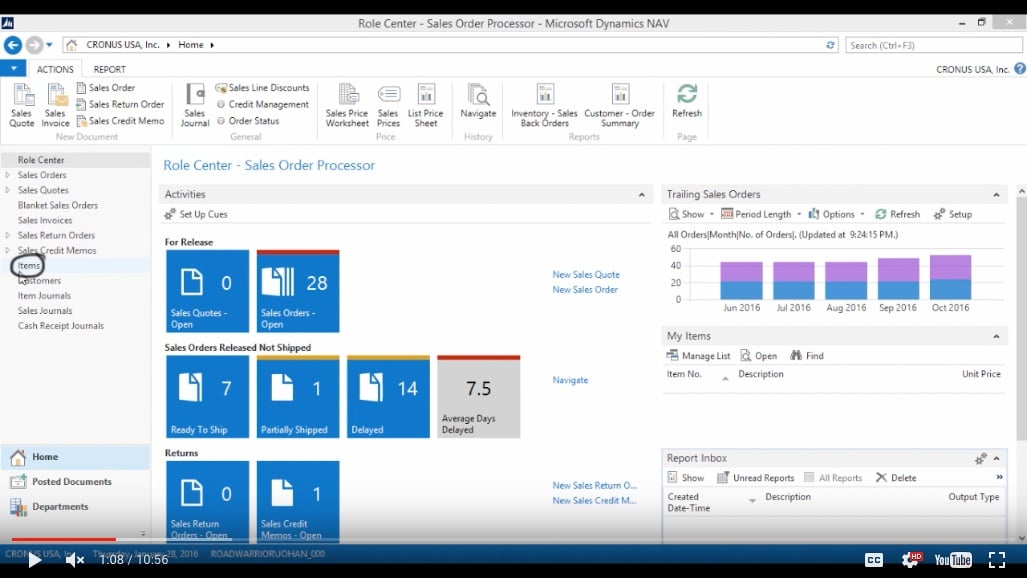

So I’m going to go into My Items.

(Click image to view larger version)

Create an Item

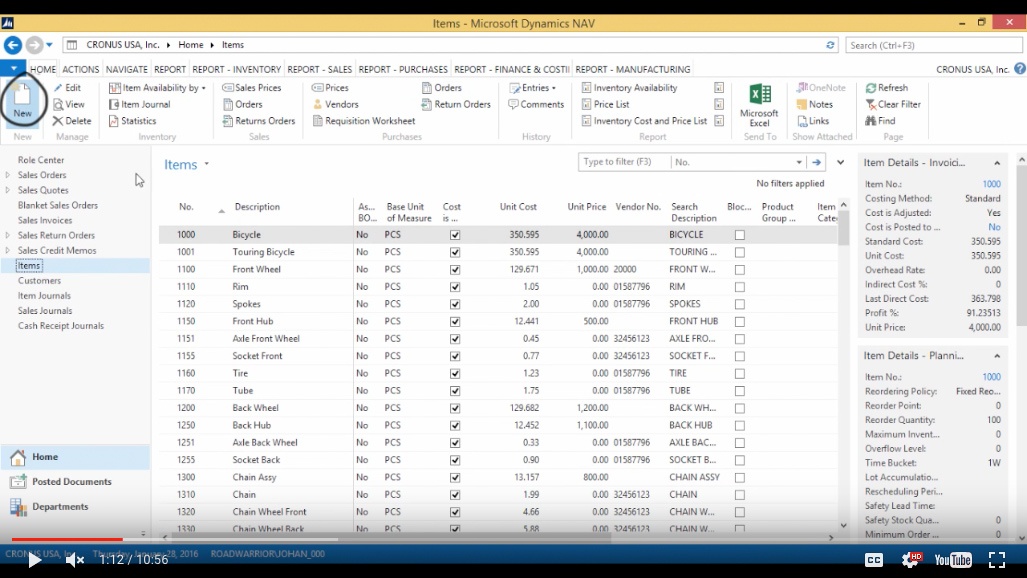

And I’m going to create a New item.

(Click image to view larger version)

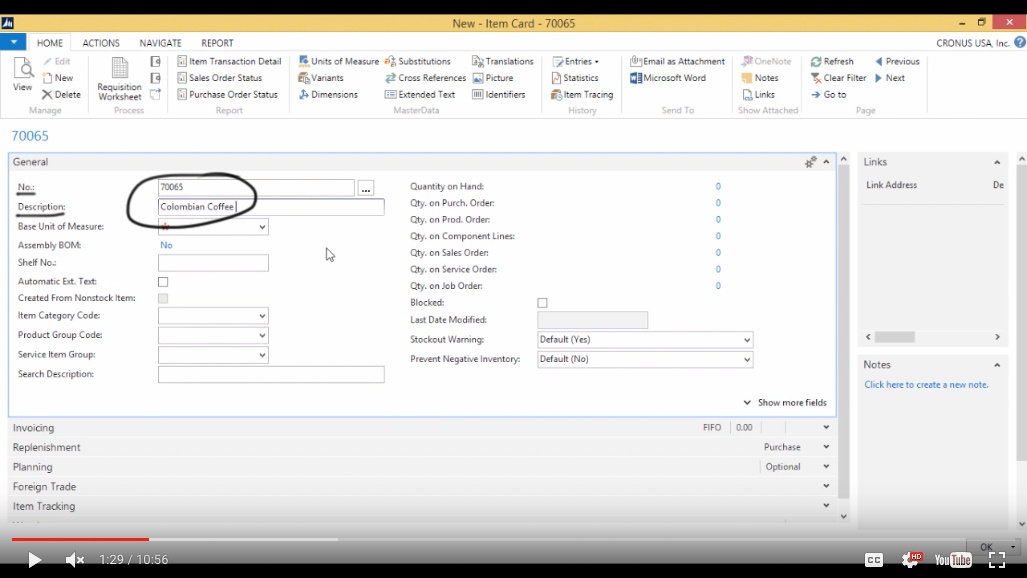

This item is going to be number 70065 and I’m going to call this ‘Colombian Coffee Beans’.

(Click image to view larger version)

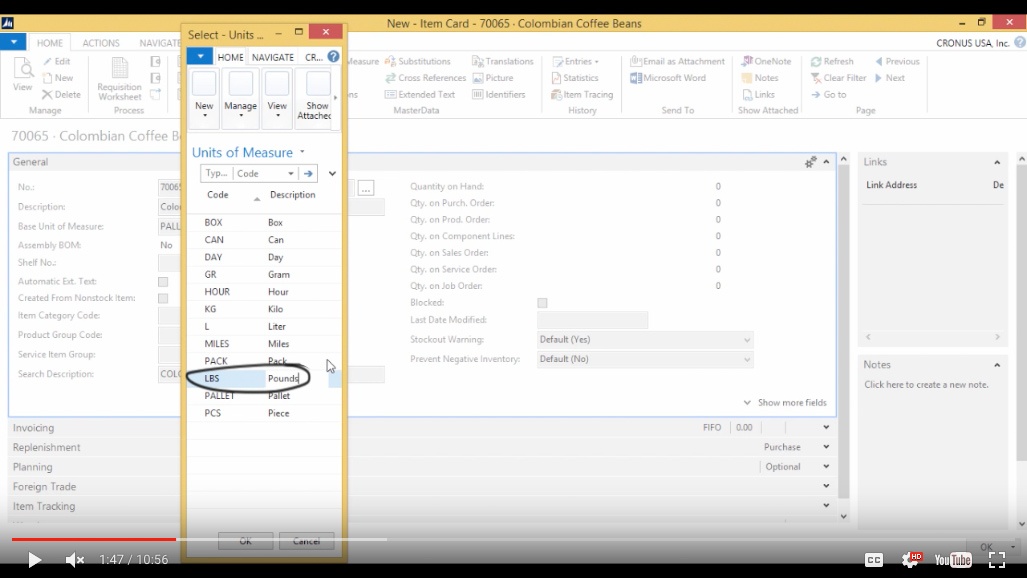

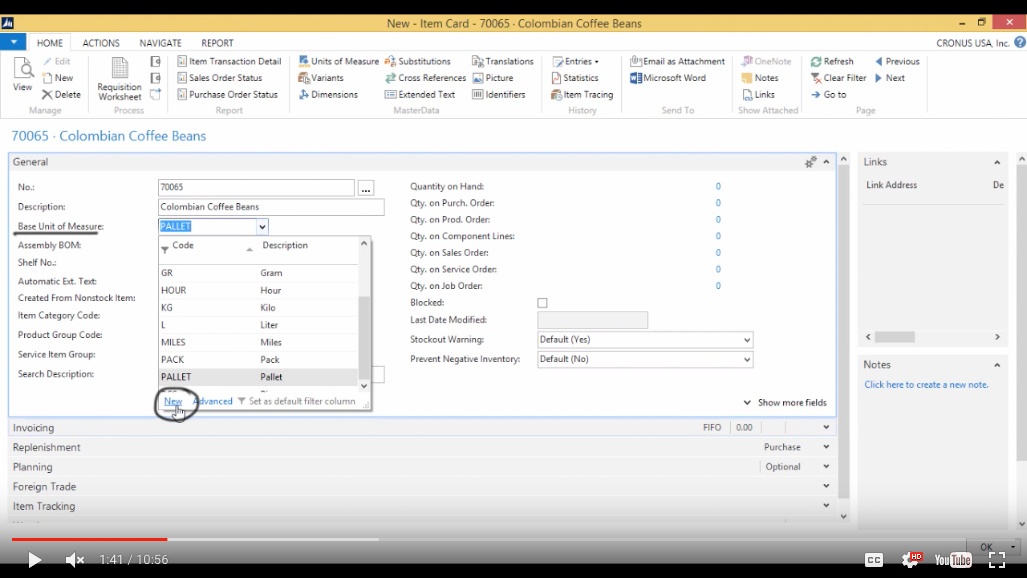

My unit of measure is going to be pounds. I don’t think I have that as an option here so I’m just going to go ahead and hit New.

(Click image to view larger version)

Create Pounds as an option. That’s my Base Unit of Measure. We buy and sell in pounds. We might actually buy in bags of more than a pound but the base unit of measure is going to be pounds. I’ll talk about that later more.

(Click image to view larger version)

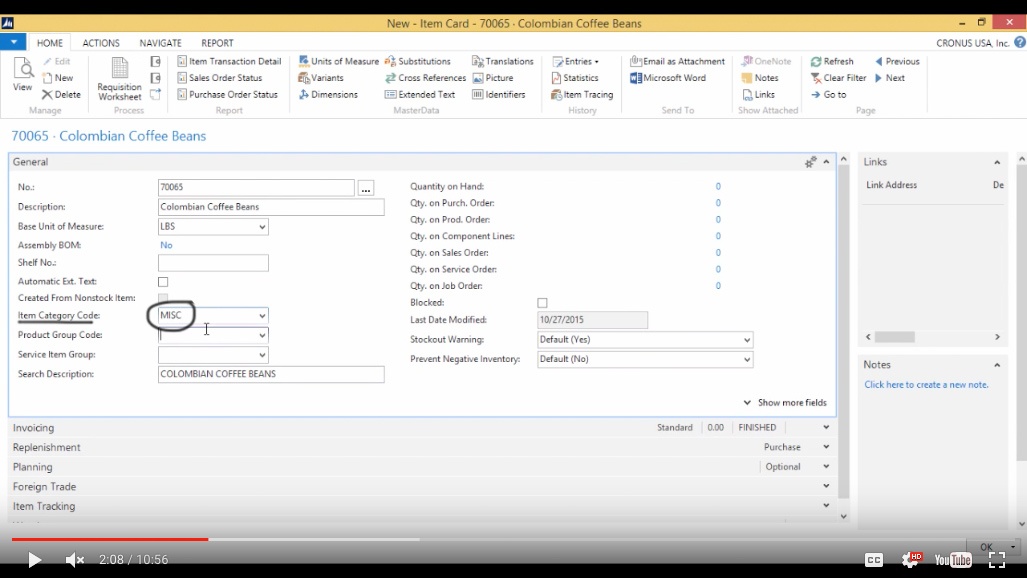

This is Miscellaneous as well like usual.

(Click image to view larger version)

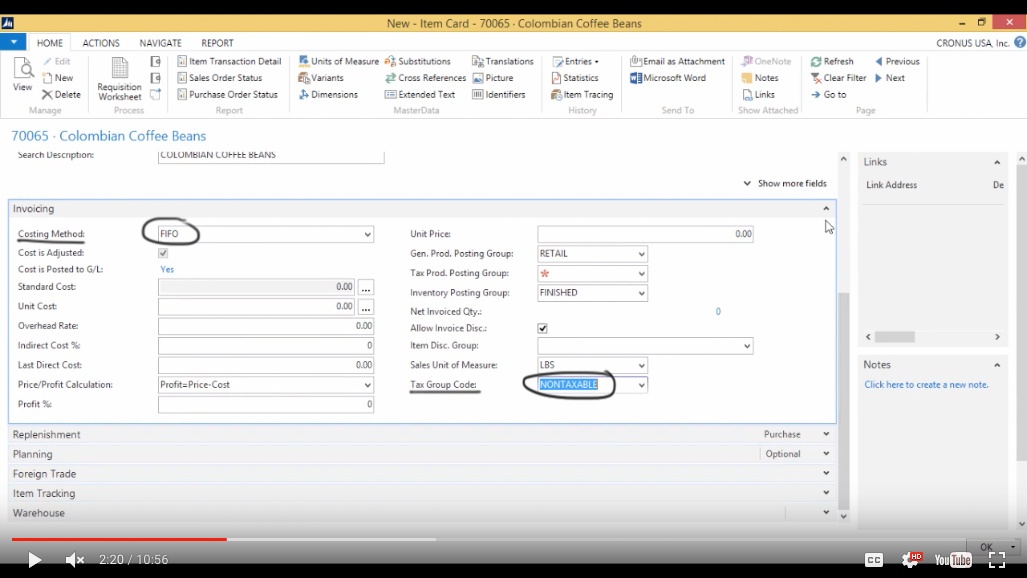

It’s FIFO and Tax Group Code is ‘Nontaxable’ since we are still with everything not taxable in our demo.

(Click image to view larger version)

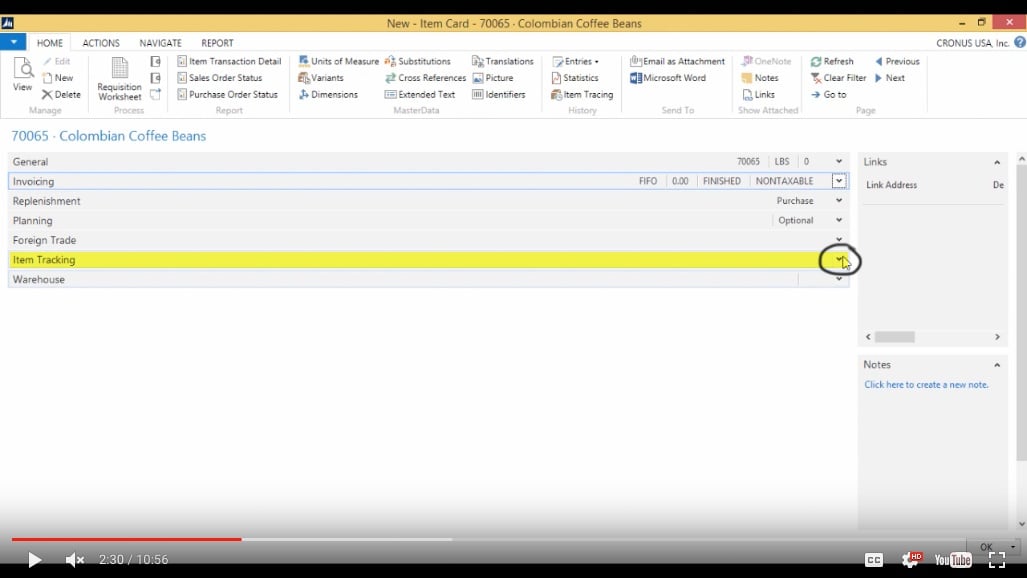

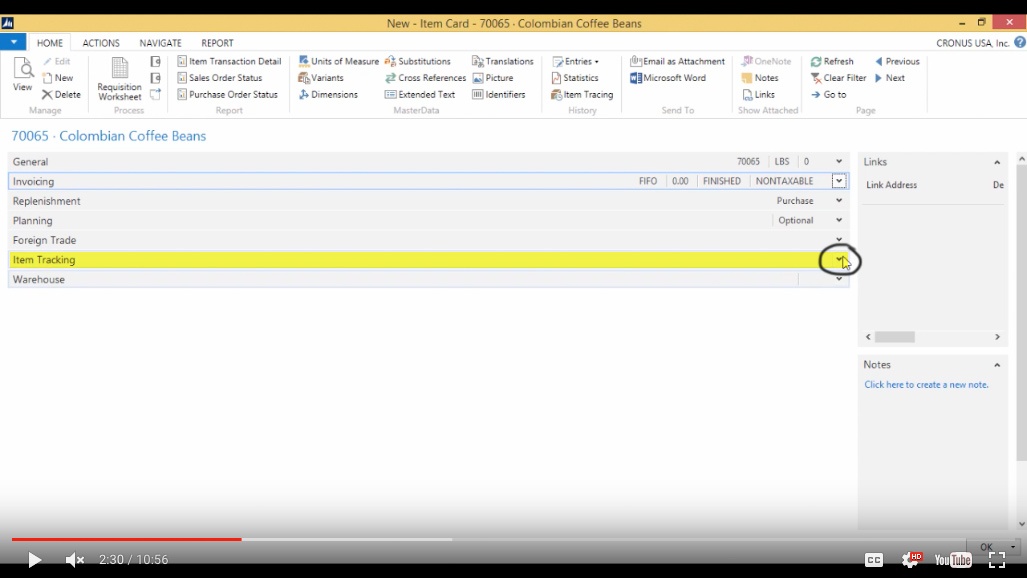

Now I want to track this as food and it has an expiration date, and what I do in order to set that up is go into Item Tracking here.

(Click image to view larger version)

Lot Specific Tracking

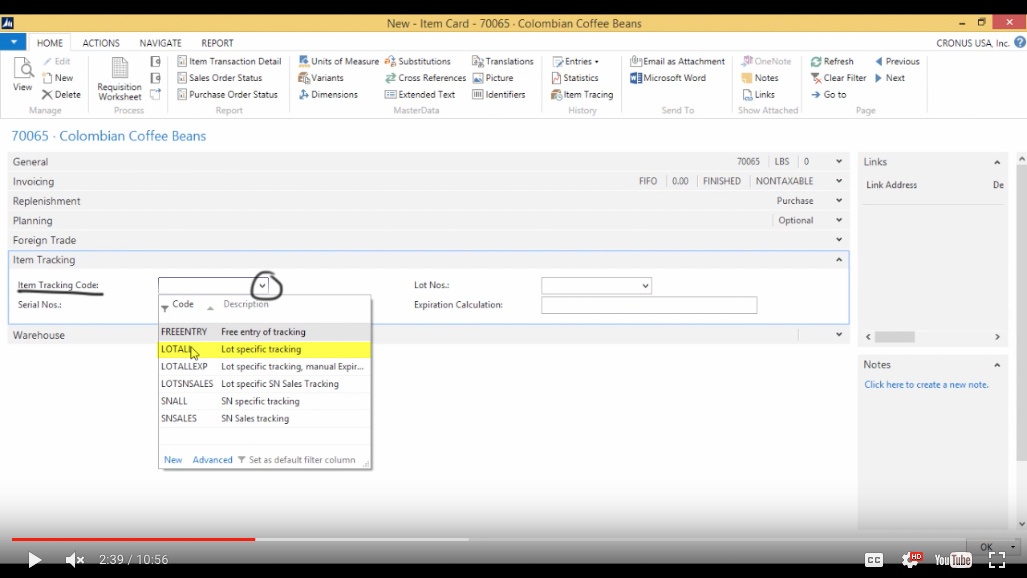

Now I’m going to go ahead and select Lot Specific Tracking – LOTALL.

(Click image to view larger version)

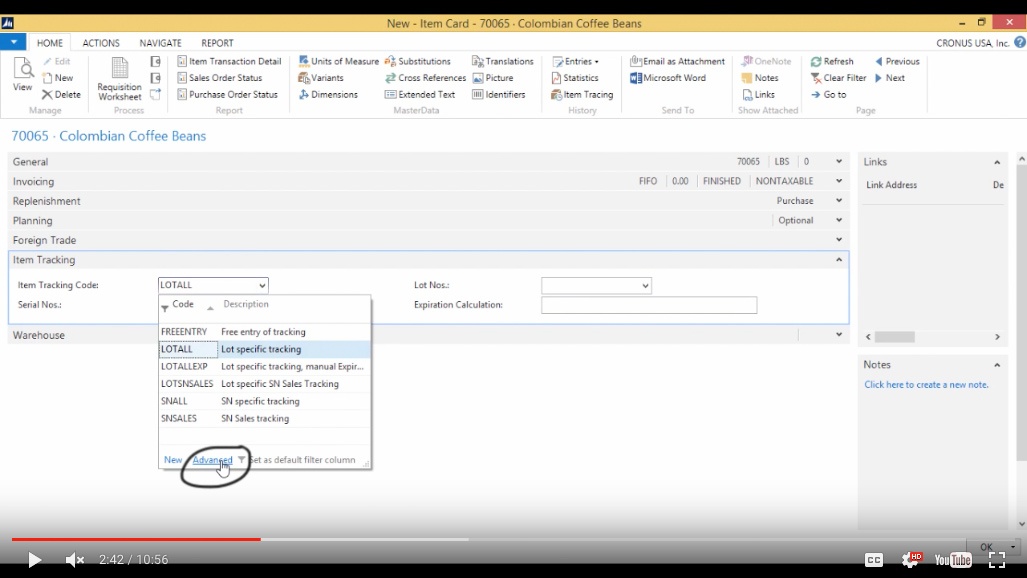

Moreover I’m going to take a quick look at what that means. Go to Advanced.

(Click image to view larger version)

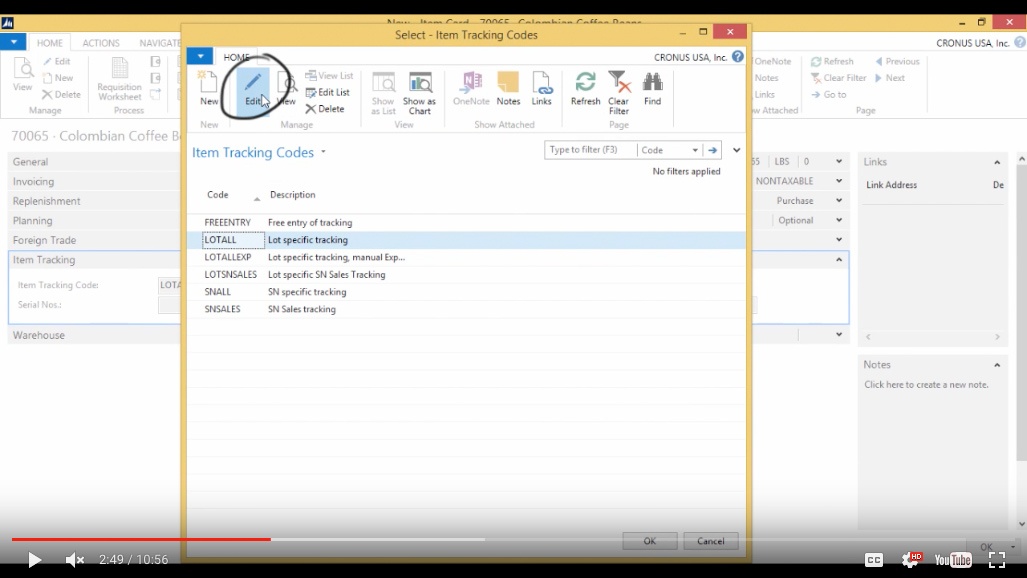

So in LOTALL if I go here into the setting and hit Edit.

(Click image to view larger version)

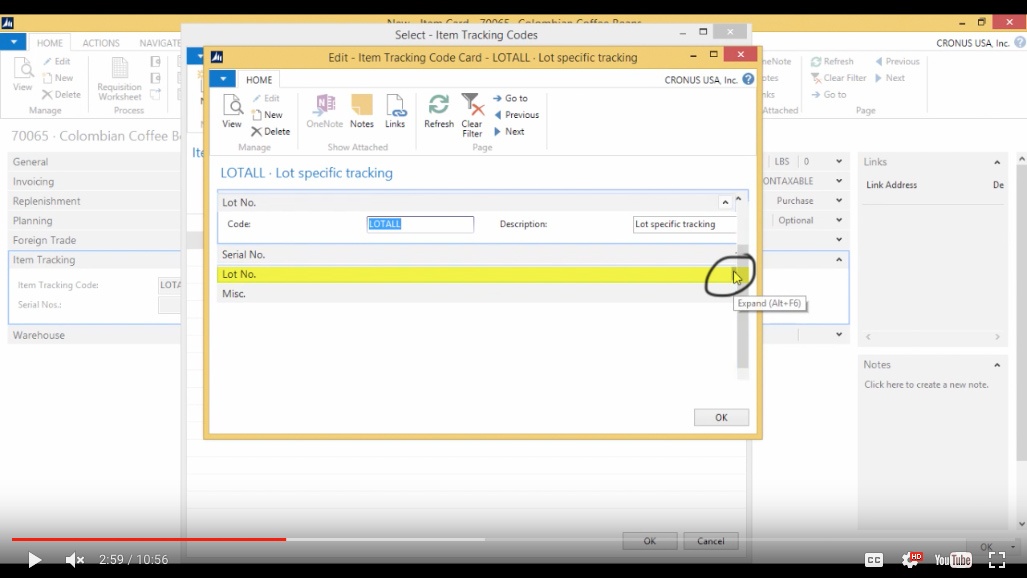

You can set the tracking specification for this LOTALL code. I take a look at the Lot Number section.

(Click image to view larger version)

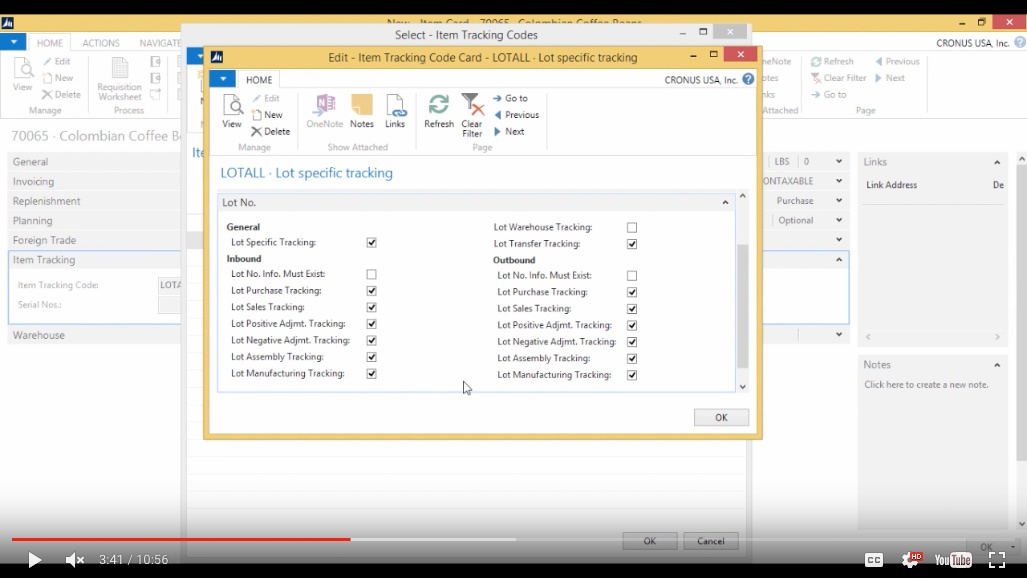

it is checked to be Lot Specific Tracking meaning we are actually going to require that the user puts Lot in the purchasing and in the sale if we do any positive adjustments or negative adjustments; if we use it in assembly or manufacturing or any type of sales tracking. So this is on the inbound side and this is on the outbound side: Purchase In / Purchase Out, Sales In/Sales Out, Positive – actually Positive Out doesn’t really make sense but in any case it’s Outbound/Inbound for everything.

(Click image to view larger version)

If Lot Specific is checked it’s going to require that all of these are checked which basically means that the costing can be accurately done with the lot, all over the place. So it matches up the lot on the costing side. So I’m going to go ahead and have this.

Create Number Series

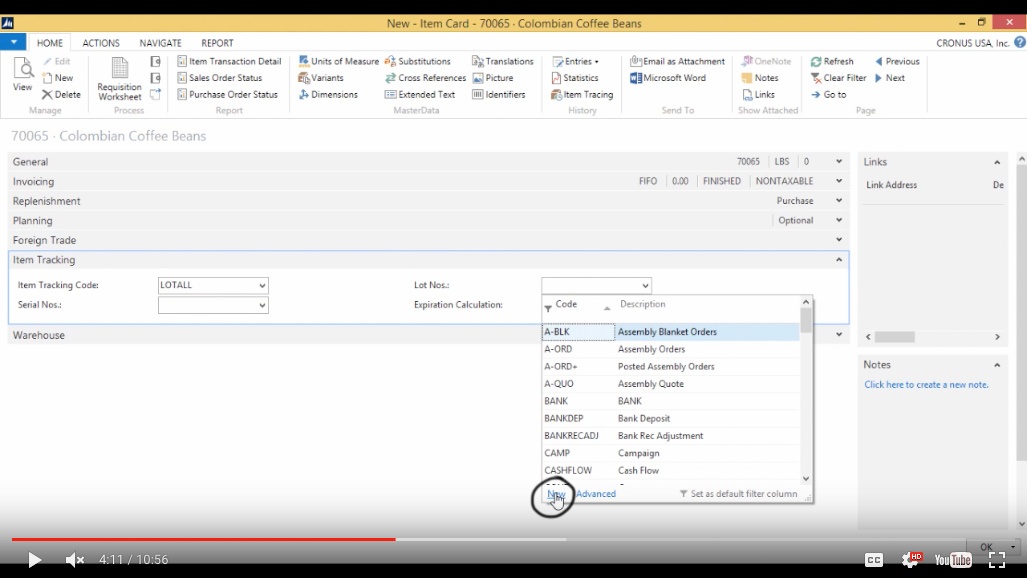

Now I’m going to have a number series for my lot because I will assign the Lot Number and I’m going to just create a New Number Series.

(Click image to view larger version)

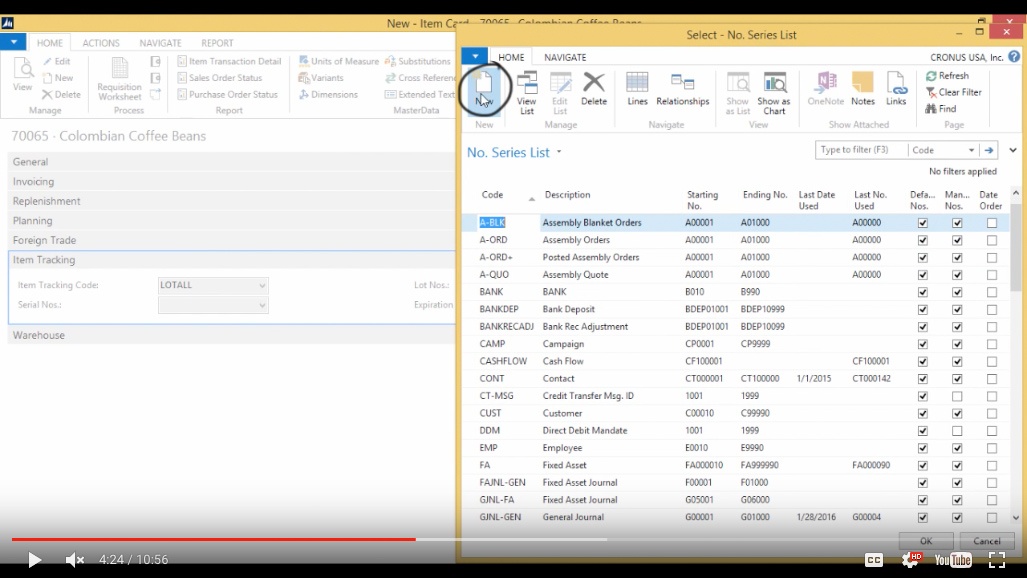

I’m going to create a new one.

(Click image to view larger version)

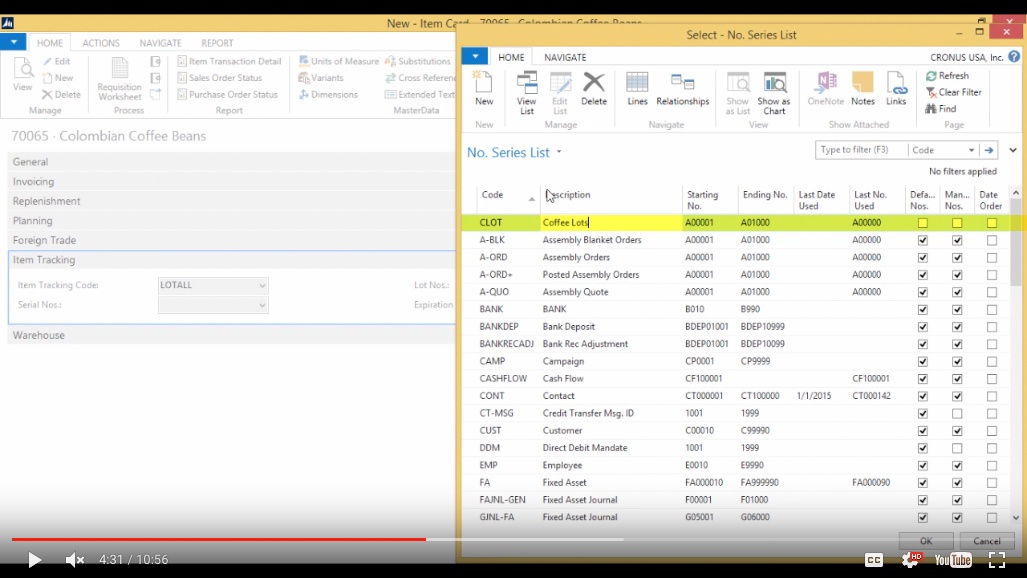

so I’ll call this ‘CLOT’ for Coffee Lots.

(Click image to view larger version)

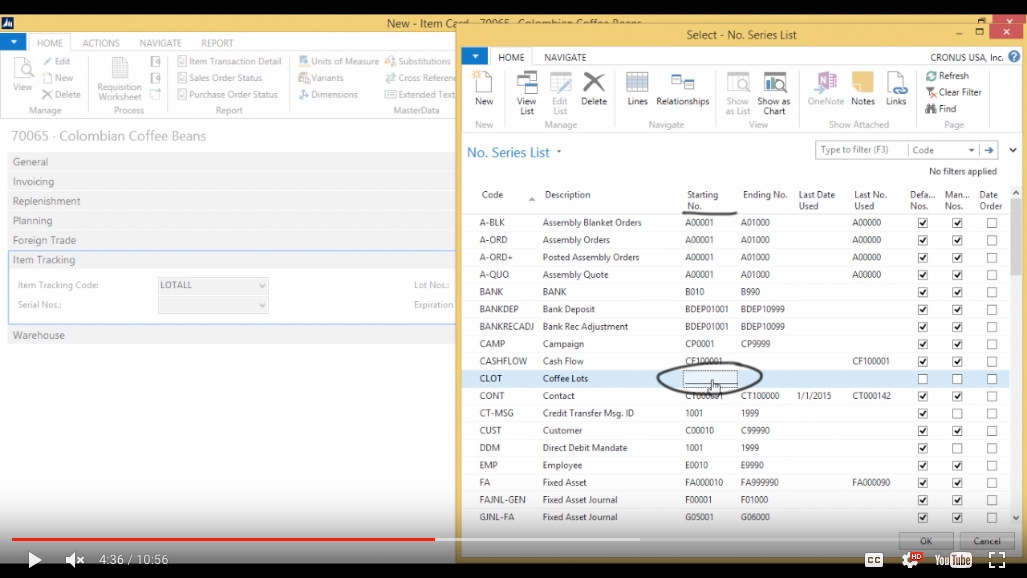

Click on Starting Number.

(Click image to view larger version)

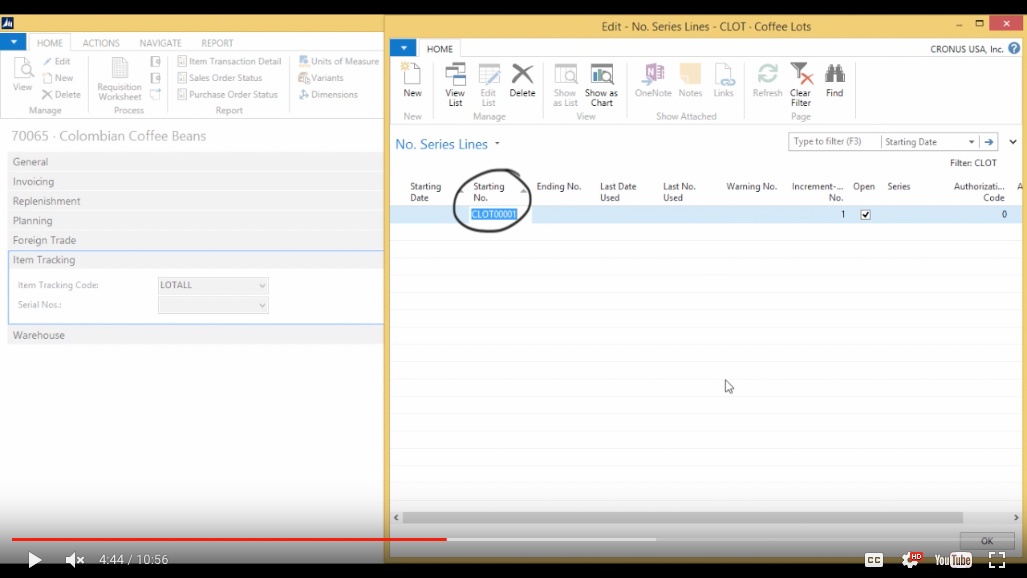

Starting Number will be CLOT00001. Click to Enter.

(Click image to view larger version)

OK and that’s it. And now we are done with setting up the lot.

Lot Tracking on the Purchase Order

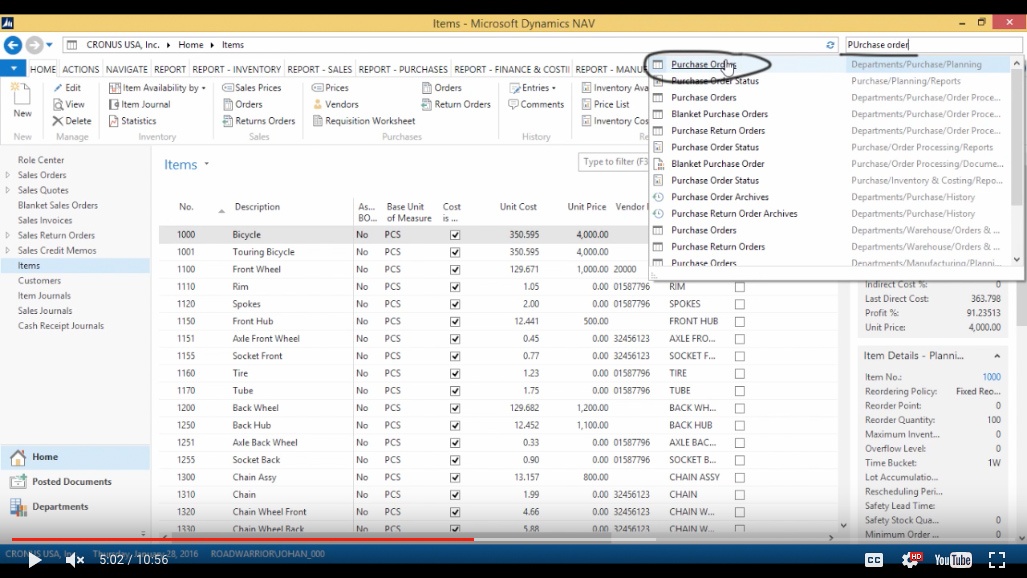

Now let’s go ahead and take a look at how that works in a Purchase Order. We’ll go into a Purchase Order.

(Click image to view larger version)

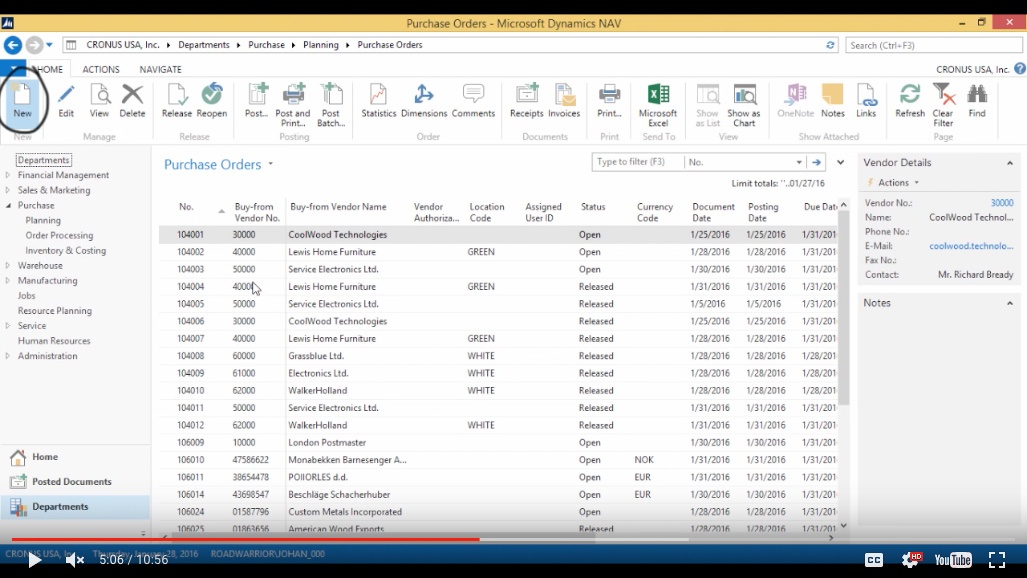

We are going to go ahead and buy some coffee, hit New.

(Click image to view larger version)

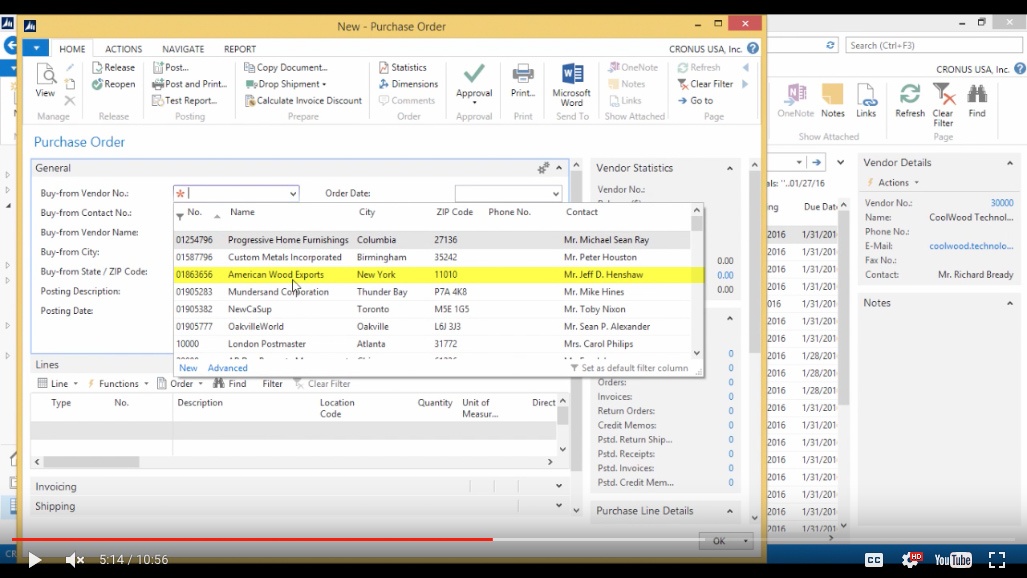

I’m going to get it into the Blue Warehouse. It’s going to come from Wood Exports – yeah they are also in coffee.

(Click image to view larger version)

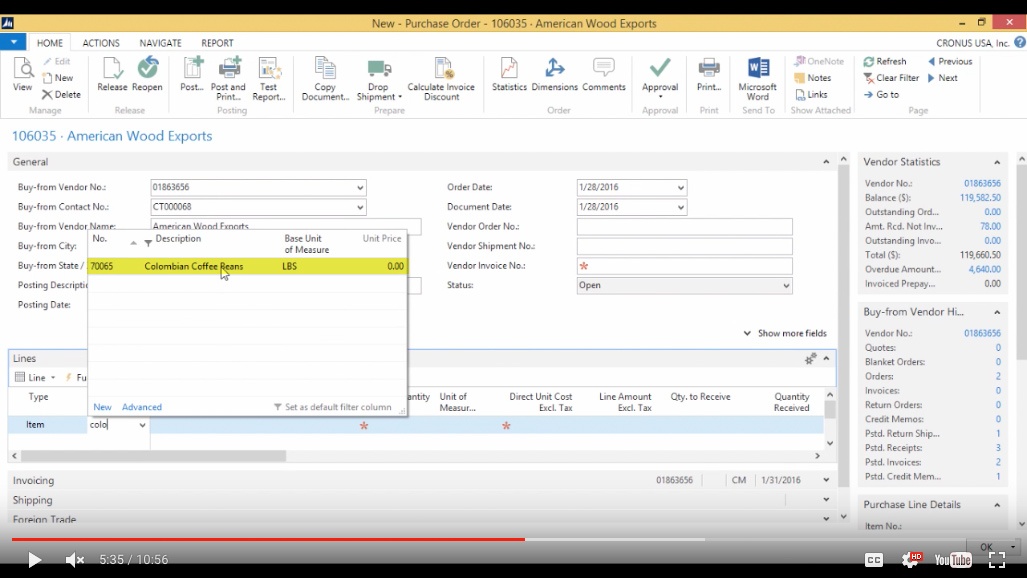

I’ll look at the item Coffee and now I actually get, let me see, Colombian Coffee Beans – here we go.

(Click image to view larger version)

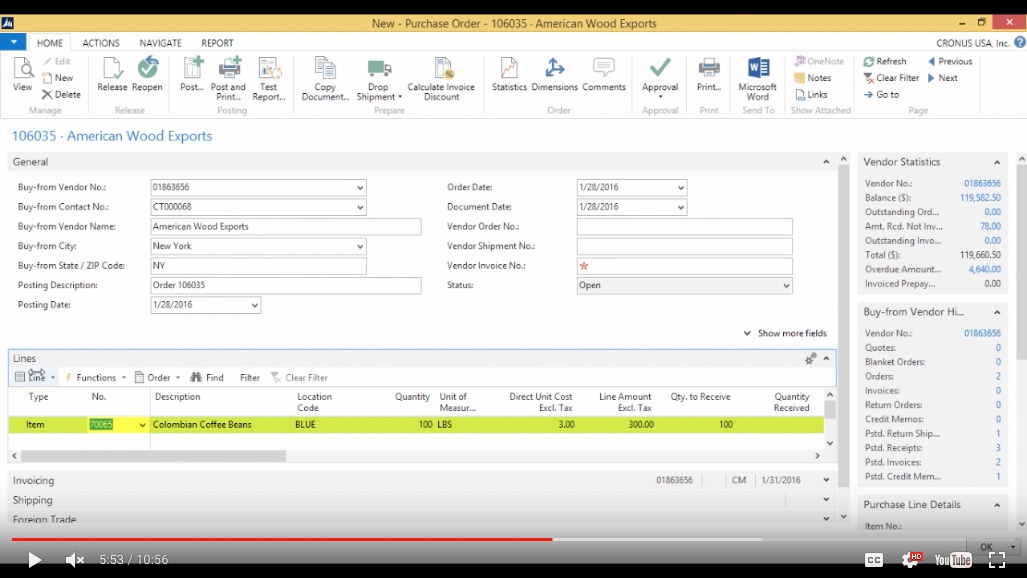

Into the Blue location we are going to get 100 pounds in. I’m going to pay $3 a pound –a great deal.

(Click image to view larger version)

Specify the Lot

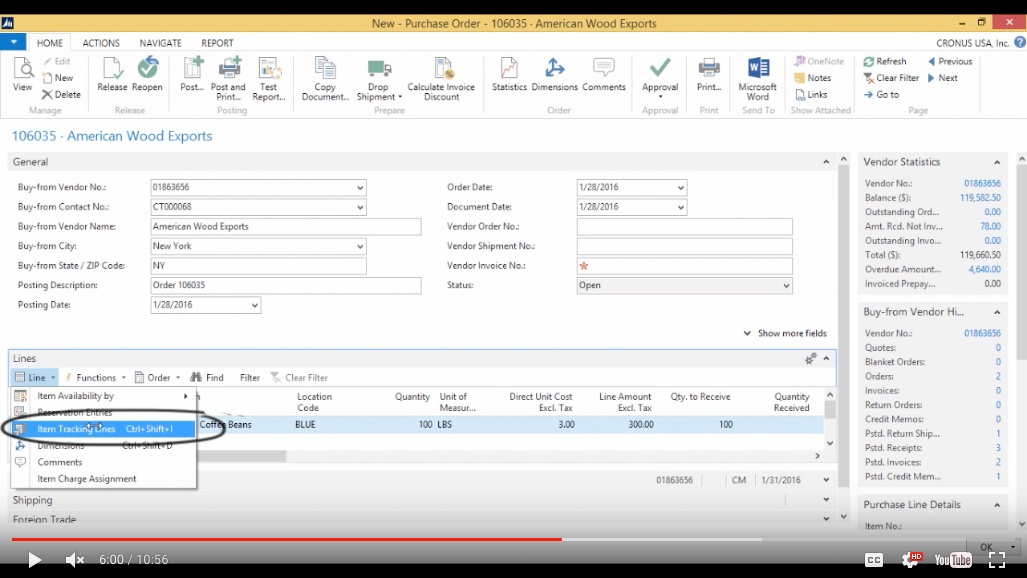

And now I actually have to go into Line > Item Tracking Lines. This is because I need to specify the lot. If I would try to actually post this – let’s say I put in the Invoice and try to Post, it will complain because Lot Number is required.

(Click image to view larger version)

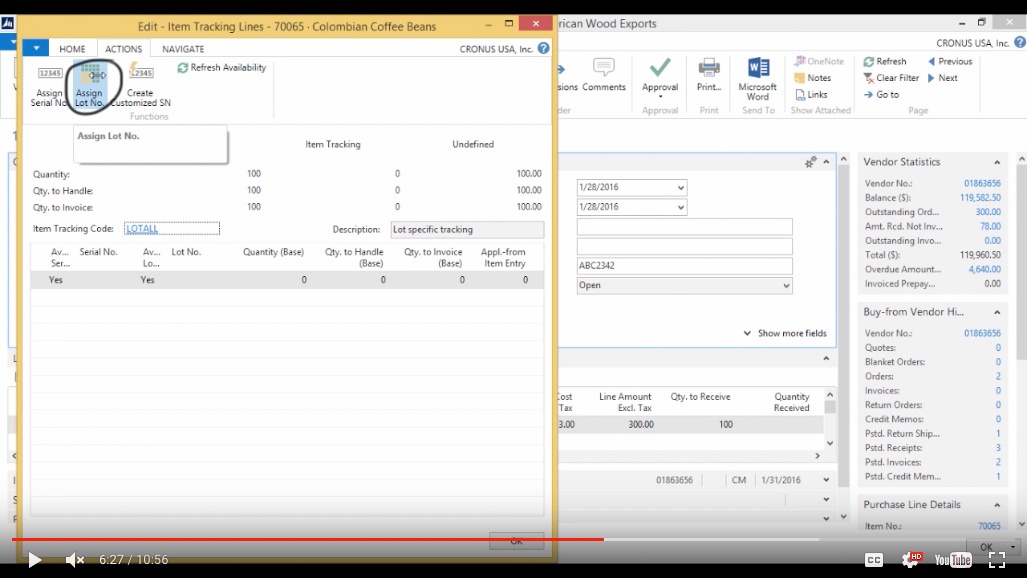

Here it allows me to set up the Lot or many Lots for the item. I’m actually going to auto-generate the Lot by hitting Assign Lot Number.

(Click image to view larger version)

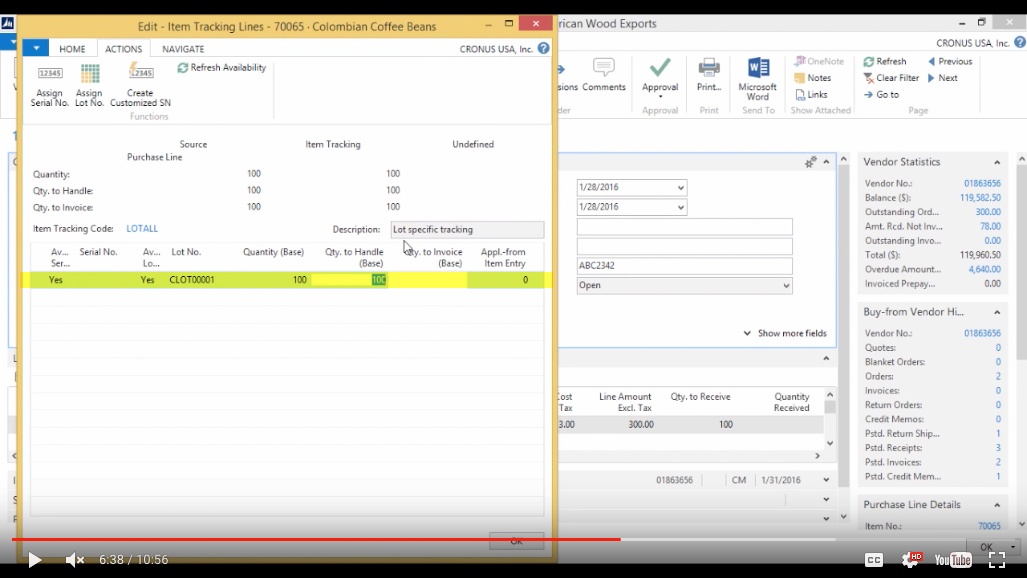

It automatically picks up in the number series and 100 pounds are coming in on this lot and that’s all we need for now.

(Click image to view larger version)

Specify the Expiration Date
Let me see, if I go in here we have something called Expiration Date.

(Click image to view larger version)

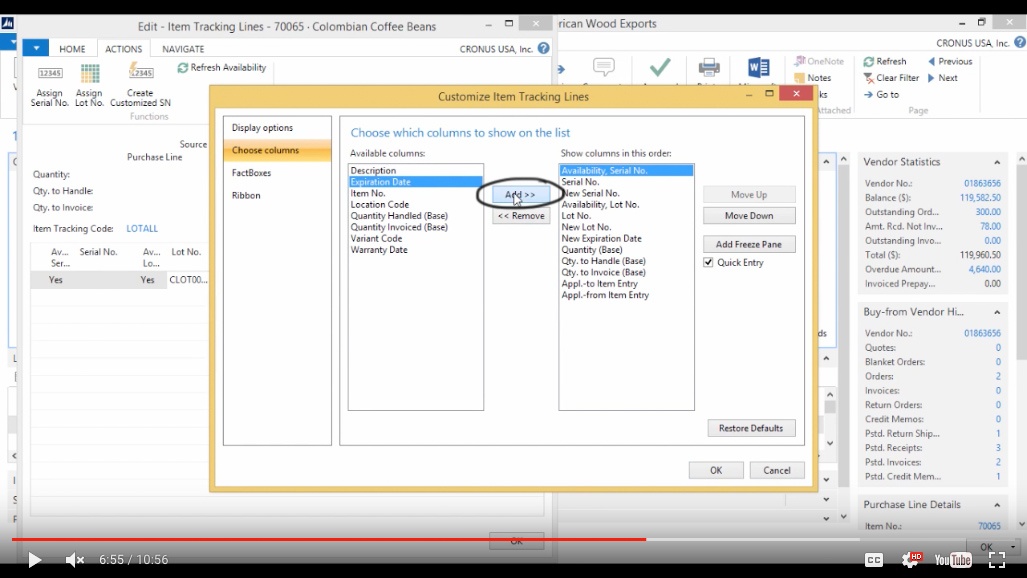

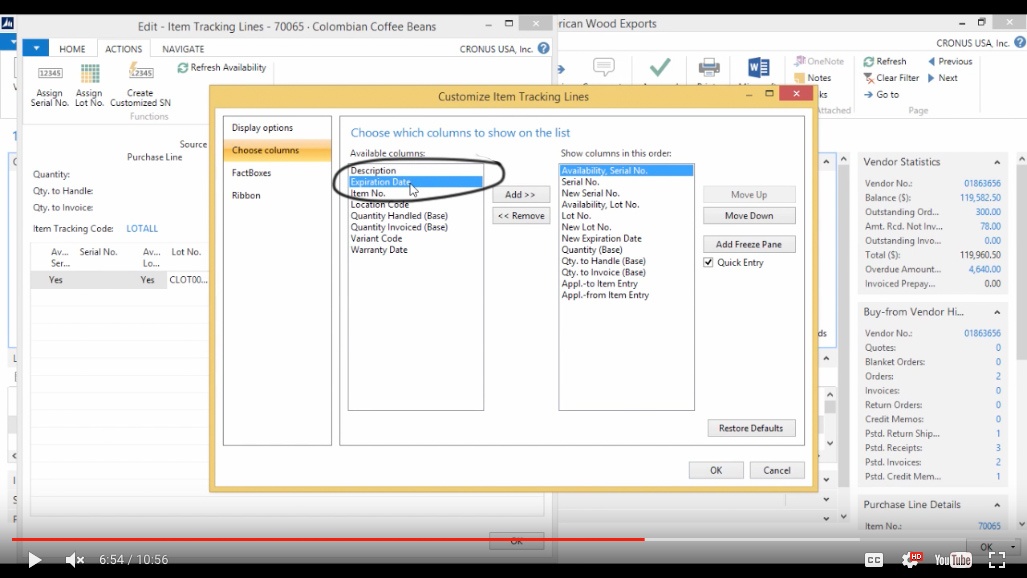

I’ll add that column.

(Click image to view larger version)

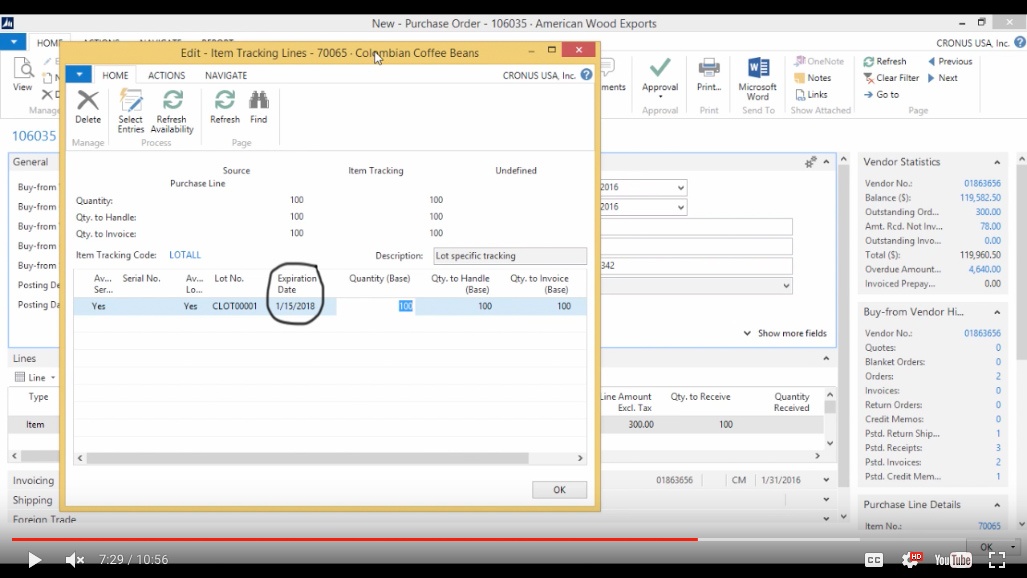

If I close the Item Tracking Lines window and re-open I should now see the Expiration Date column. I enter 01/15/2018.

(Click image to view larger version)

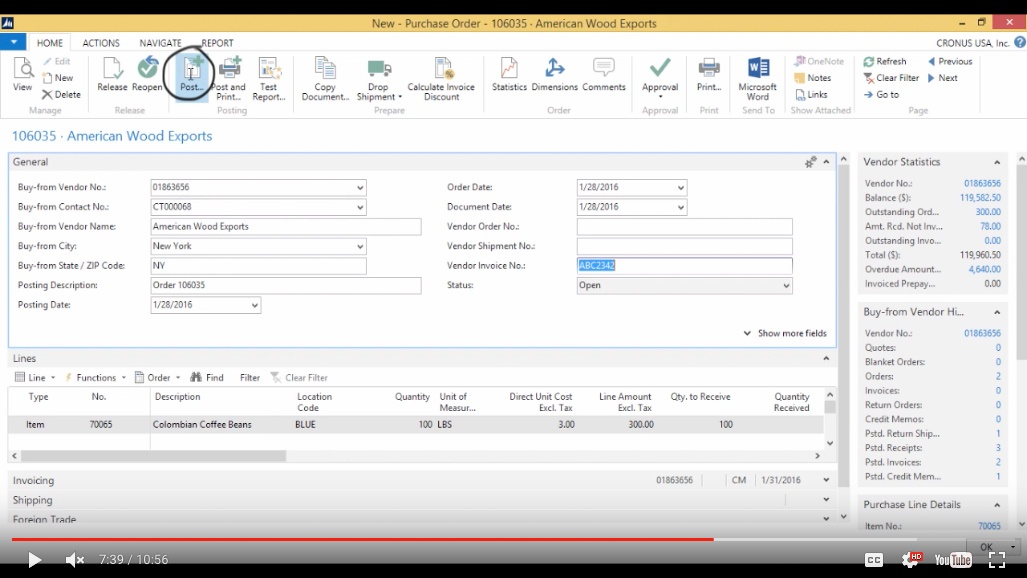

So now I’ve actually specified the lot and the expiration date for my coffee beans. Now I’ll go ahead and post this.

(Click image to view larger version)

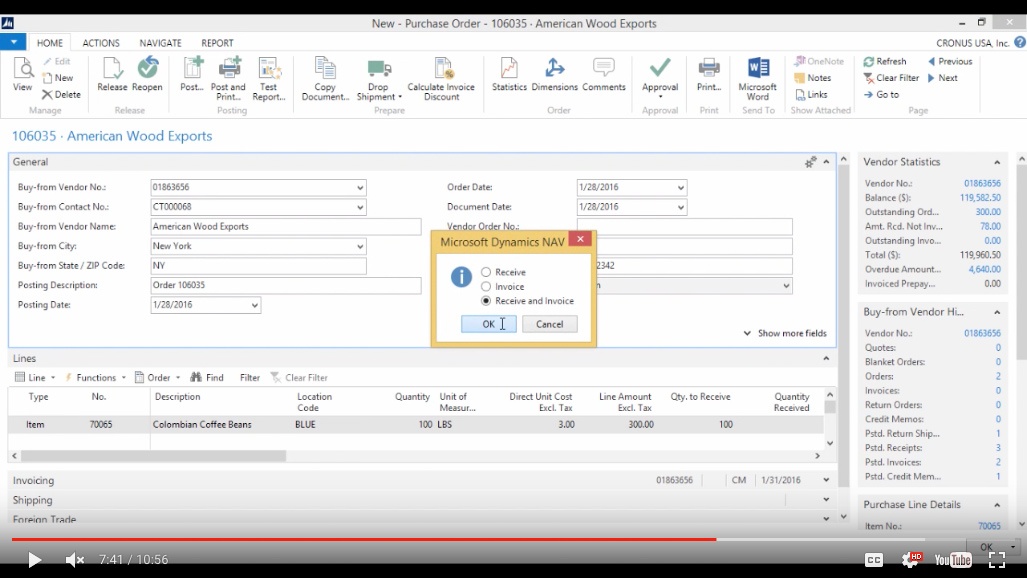

Receive and Invoice. Then OK.

(Click image to view larger version)

Create a Sales Order

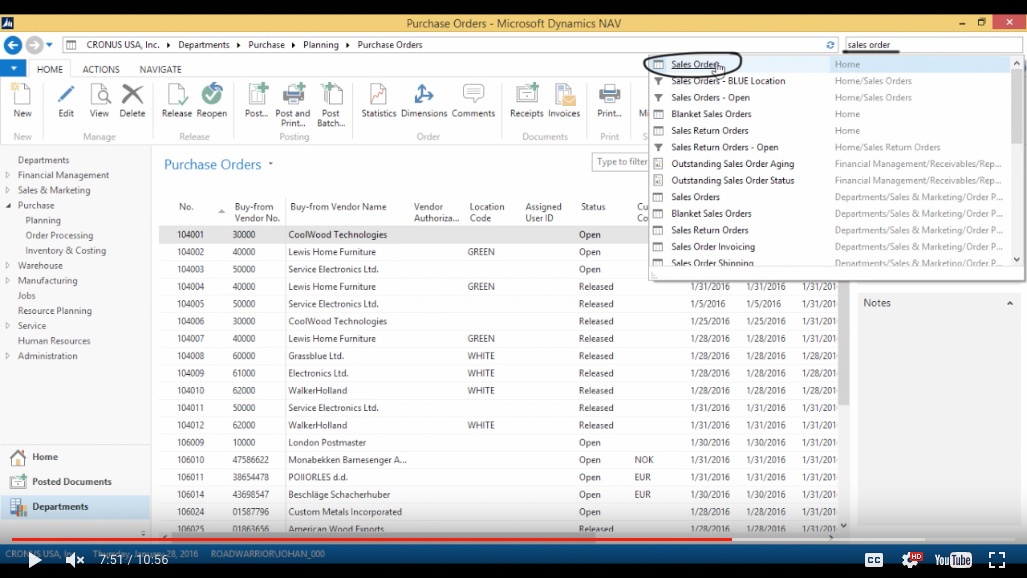

Now if I’m selling, I go to a Sales Order.

(Click image to view larger version)

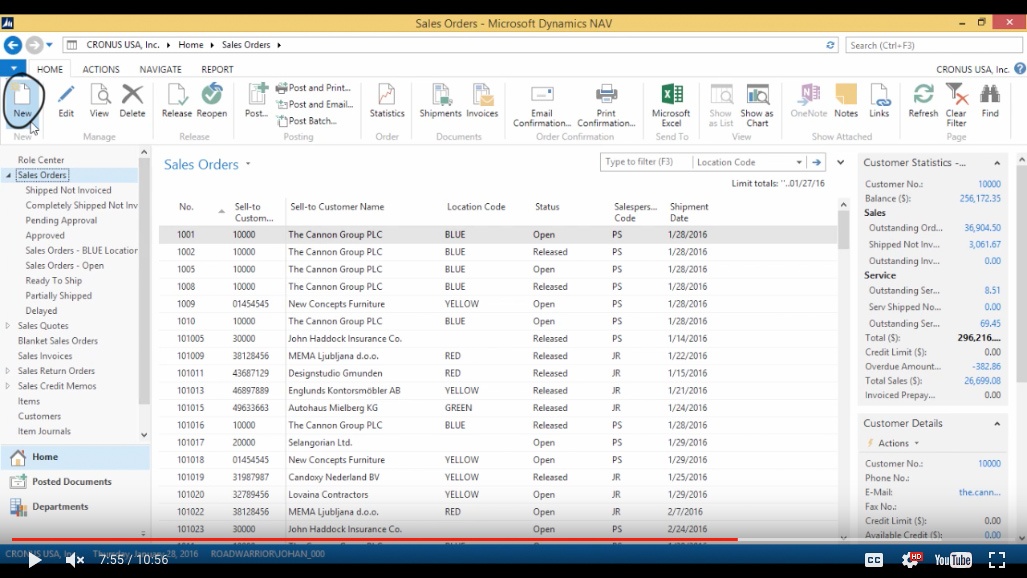

Create New.

(Click image to view larger version)

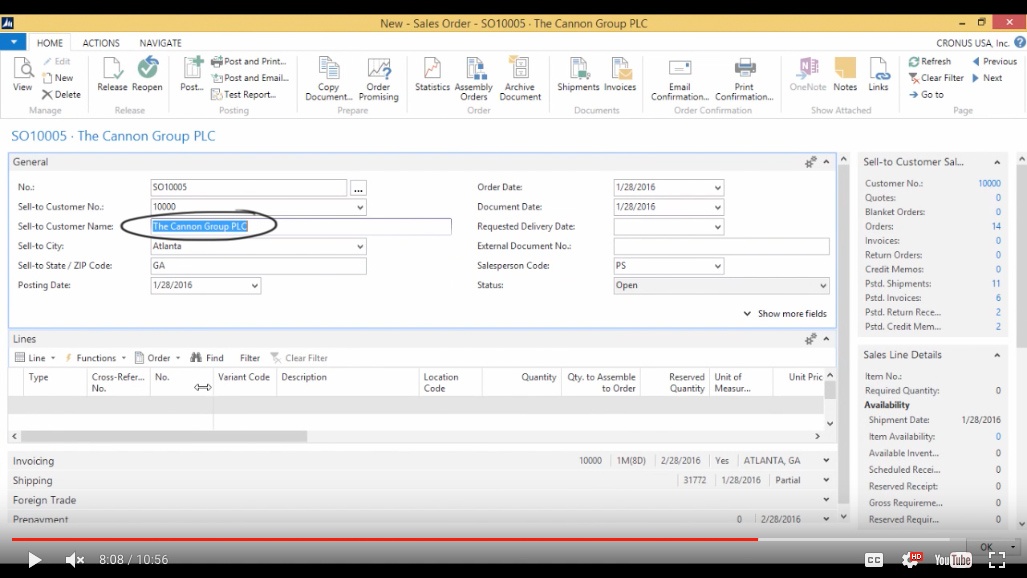

It’s going to require me to pick out of the lot again. I’ll sell to the Cannon Group; they have been waiting a long time for some good coffee.

(Click image to view larger version)

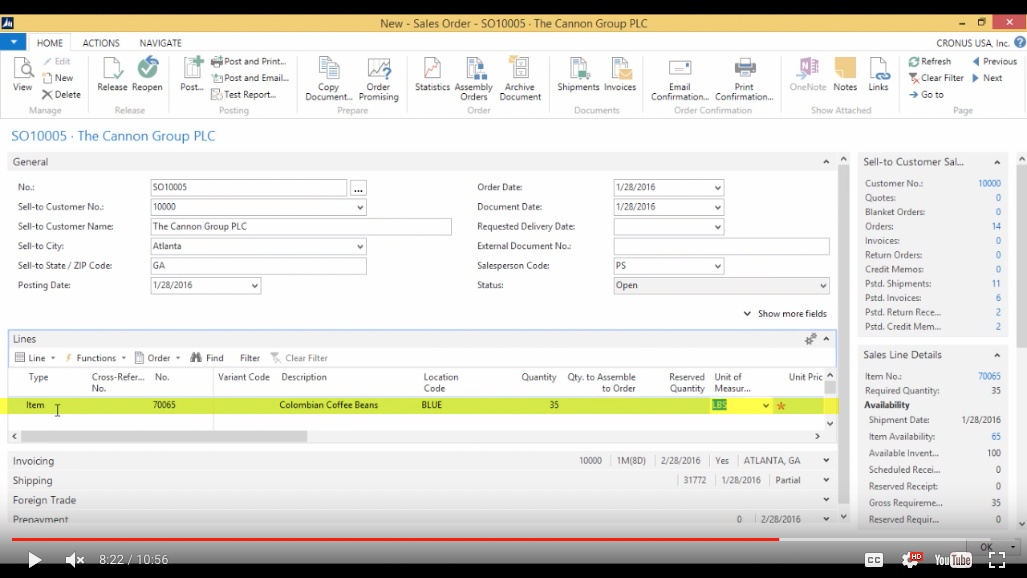

The Item is Colombian Coffee Beans and we are going to sell them 35 pounds.

(Click image to view larger version)

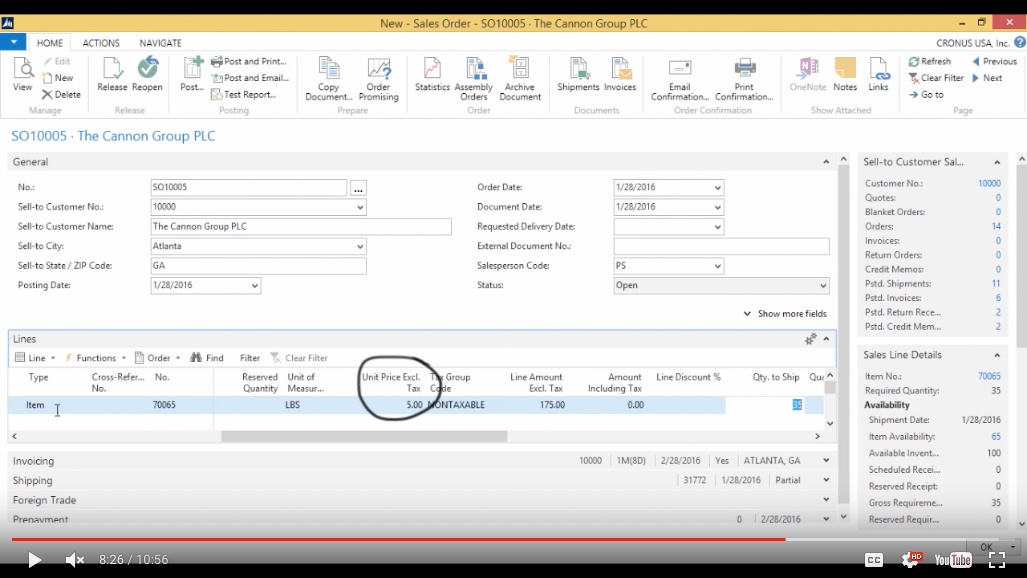

Unit price of $5.

(Click image to view larger version)

Specify the Lot

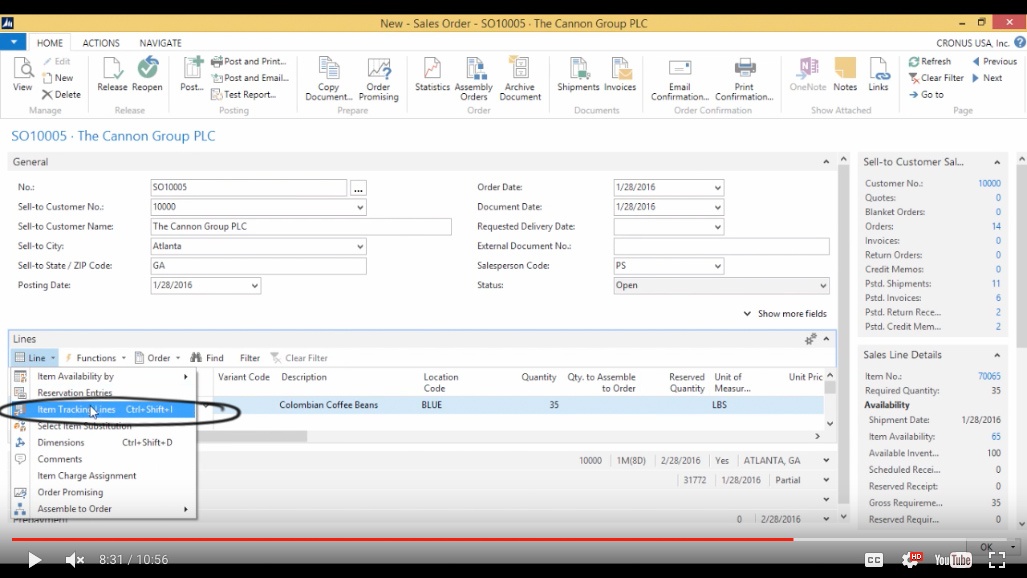

And again I need to specify the lot. So I go to Line > Item Tracking Lines.

(Click image to view larger version)

It asks me ok now you have to select a lot, I go in here.

(Click image to view larger version)

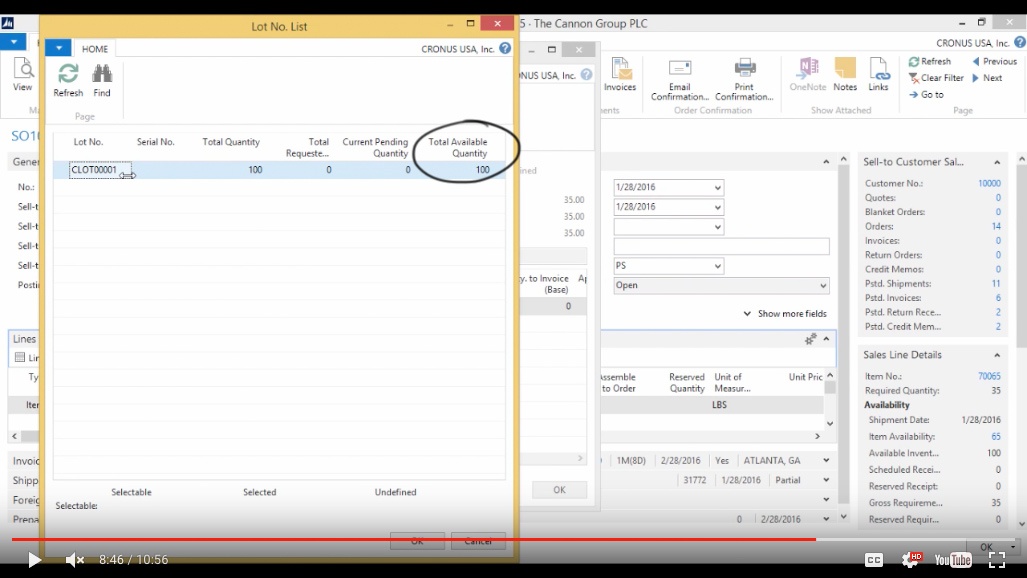

It displays that I have actually one lot in here for 100 pounds. I hit OK.

(Click image to view larger version)

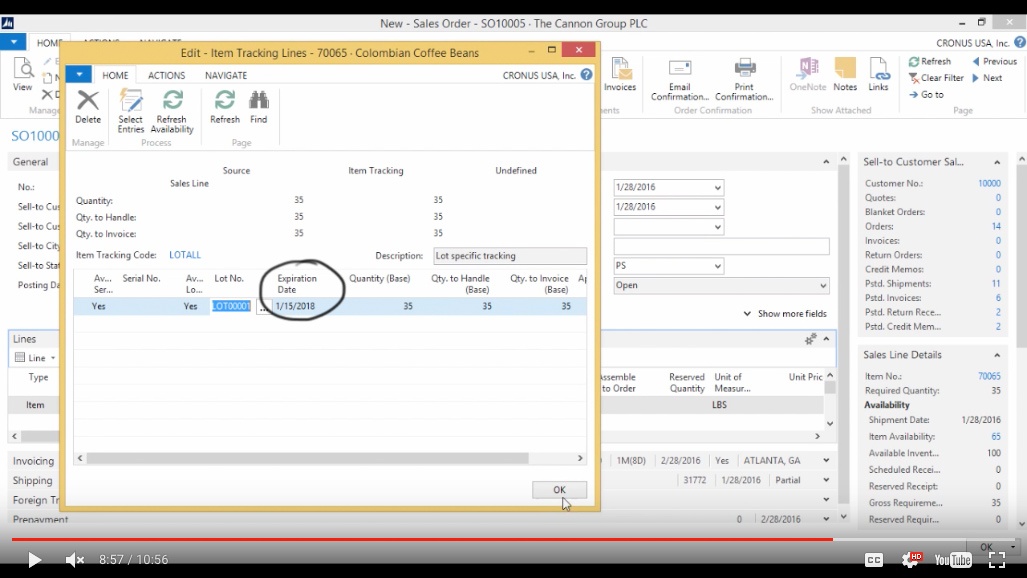

It shows me the Expiration Date, it has plenty of days left and I hit OK.

(Click image to view larger version)

Post the Sales Order

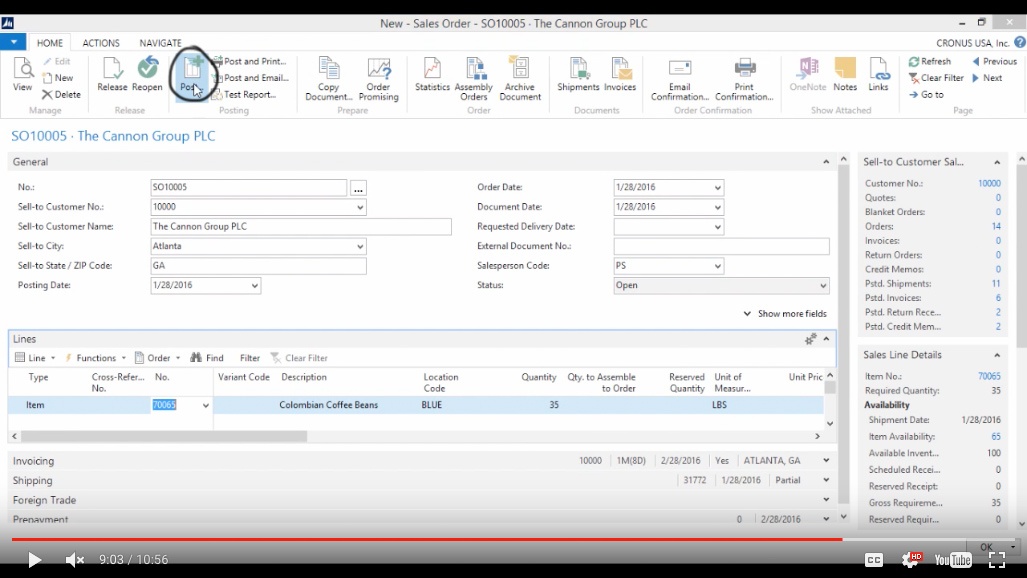

I’m going to go ahead and Post this.

(Click image to view larger version)

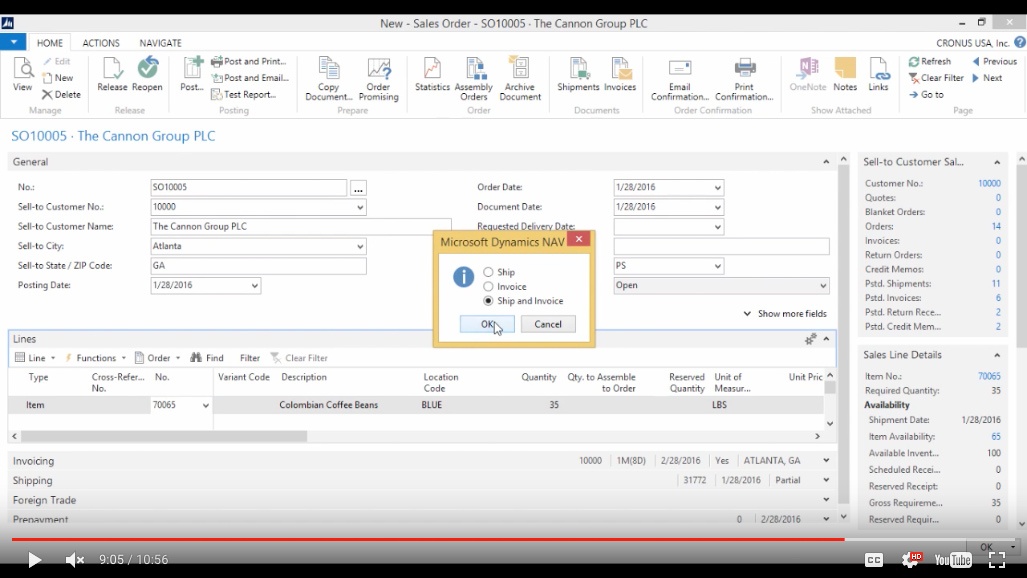

Ship and Invoice and now that’s out.

(Click image to view larger version)

Review the Item

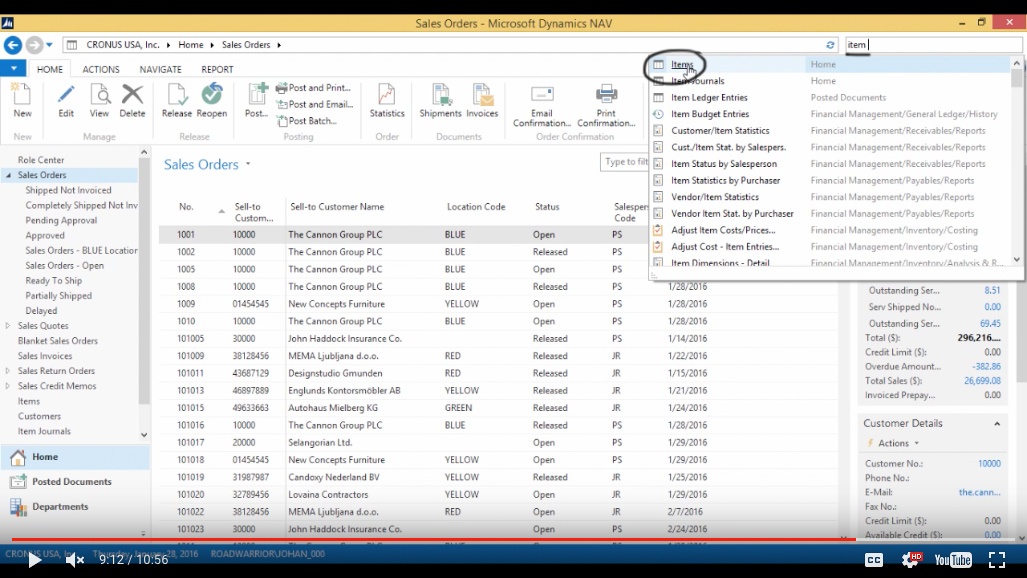

Let’s take a look at the item now.

(Click image to view larger version)

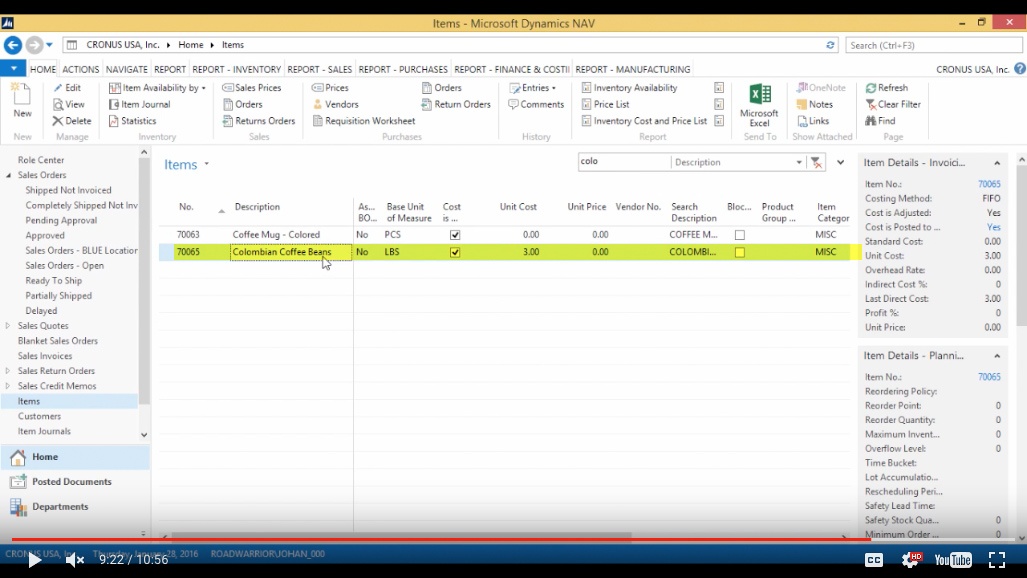

If I look at the item and I want to take a look at the Colombian Coffee Beans.

(Click image to view larger version)

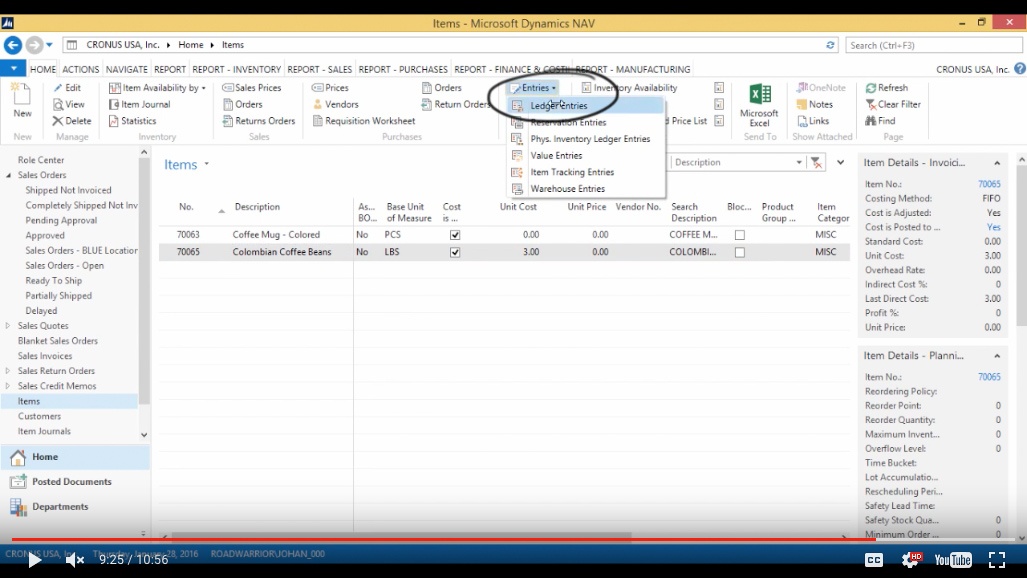

Go to Entries > Ledger Entries.

(Click image to view larger version)

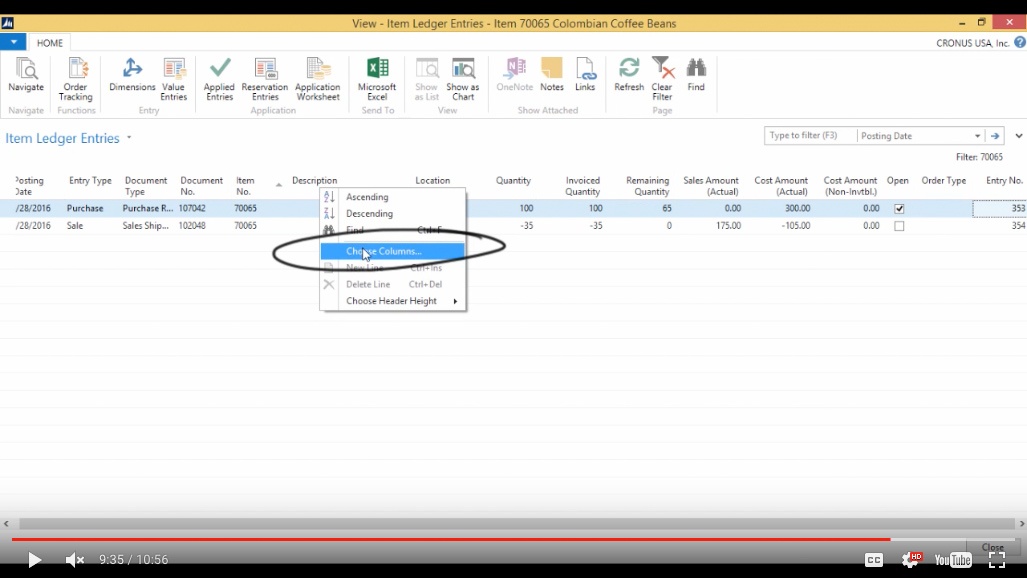

I can see that I have in and out entry and if I do Choose Columns.

(Click image to view larger version)

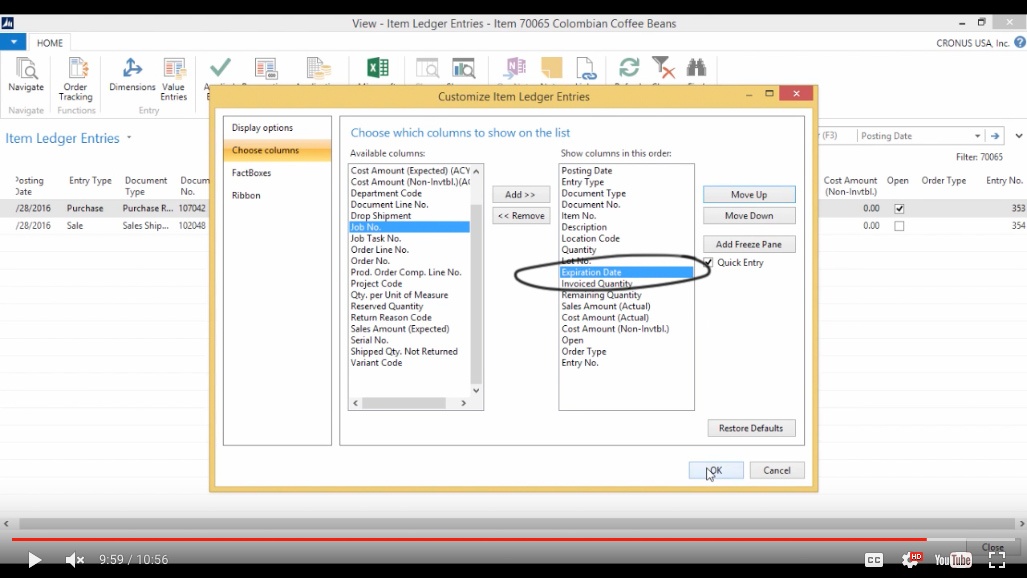

I want to show the Lot Number and let me see, and the Expiration Date. Let me put that up a little bit, put that next to the Quantity and the Expiration Date here.

(Click image to view larger version)

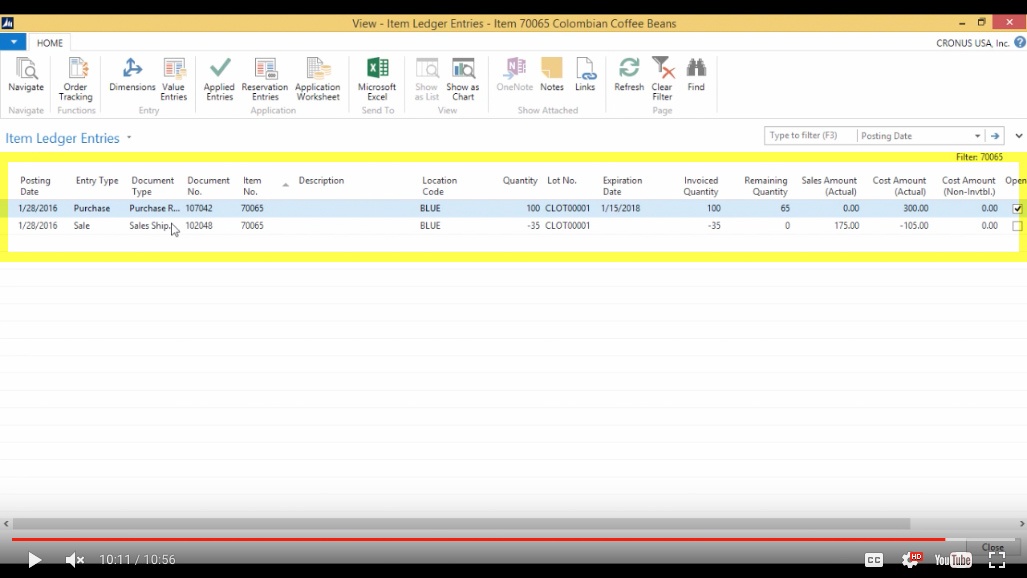

Now I can see, that it came in, 100 came in, the expiration date is the 18th and then we sold out of the same lot number, 35.

(Click image to view larger version)

Now the costing and everything will be isolated by the lot number because we have selected Lot Specific Tracking, and Lot Specific Tracking requires you to say the lot or indicate the lot wherever you go so the cost isolation level is on the Lot Number. And that’s how you work with Lots in NAV.
